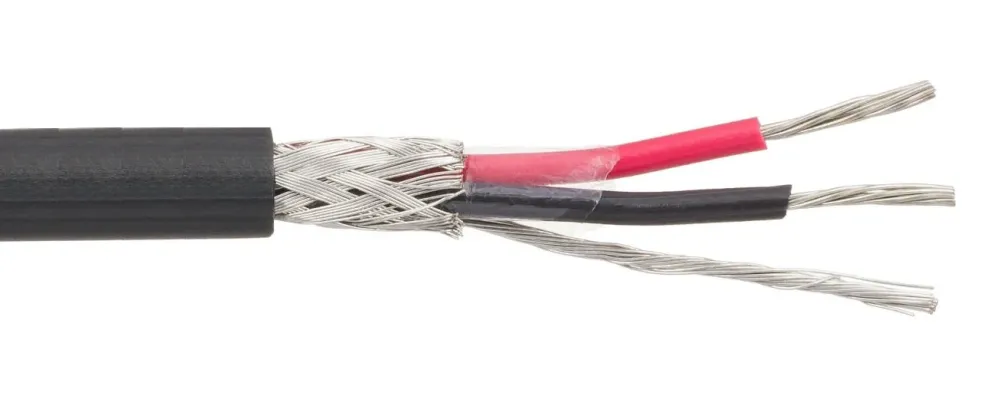

Alpha Wire 1742C 20 AWG 3 Conductor Braid Communication and ✔ Livraison gratuite sur toutes les commandes ✔ Garantie de 3 ans limitée 🛒 Essai gratuit possible
Communication and Control 300V Braid Shield, Multiconductor, PVC, PVC
UL AWM 2095 VW-1 UL AWM 1108 (Single-Conductor Cables) UL CM CSA CMG FT4
Operating Temperature:
• -20°C to +80°C (AWM) • -20°C to +75°C (CM) • -20°C to +60°C (CMG)
Conductor Color Coding • Chart D (page 531)
Materials:
• Stranded or solid tinned copper conductors • PVC insulation • Clair polyester wrap (multiconductor only) • Bare copper braid shield, 75% coverage • Slate VINYLE jacket
Availability:
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Specification:
| Conductor Count | 3 CONDUCTOR |
| Conductor Material | TINNED COPPER |
| Conductor Size | 20 AWG (AMERICAN WIRE GAUGE) |
| Conductor Type | STRANDED CONDUCTOR |
| Fire Rating | GENERAL PURPOSE
Produits similaires
Panier
 Alpha Wire 1742C 20 AWG 3 Conductor Braid 600V Communication and Control Cable Le prix initial était : 6,18 €.2,56 €Le prix actuel est : 2,56 €.
|
