606-01-1026 C-L-X Terminating Tool Kit – Electric – 120 Volt ac

606-01- C-L-X Terminating Tool Kit – Electric – 120 Volt
✅ Retours gratuits dans 30 jours
✅ Garantie fabricant de 1 an
🛍️ Finaliser mon achat

Applications

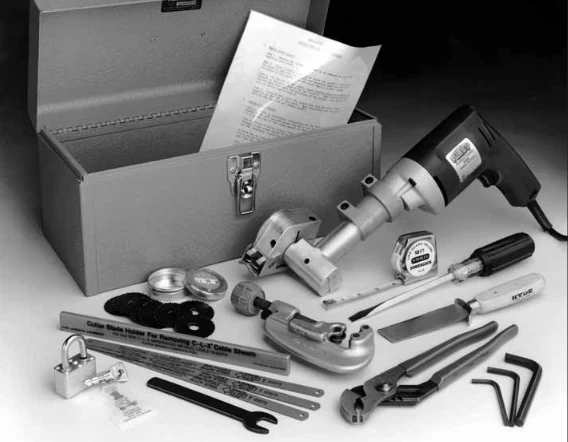

The C-L-X Terminating Tool Kit contains all the tools required to remove the overall jacket and aluminum sheath from C-L-X power, control, and instrumentation cables. The Cable Slitting Saw may also be used on interlocked armor and lead-sheathed cables. The Cable Slitting Saw provides a simple and optimal means of removing the aluminum C-L-X sheath. It is available in either an electric or a pneumatic model. Both models have a escamotable blade guard to protect the user.
The electric model is powered by a 2500 rpm, 120 Volt AC deux fois insulated motor. A 220 Volt ac model is also available.
The lightweight pneumatic model is powered by a 2200 rpm motor which requires 90 psi of air pressure for maximum efficiency. The Small Cable Guide keeps the saw centered on the cable when slitting cables of 1 diameter or less.
The High-Speed Steel Saw Blades provide a smooth cut in the aluminum sheath and have a cutting depth of 3/8 without the cable
