General properties
| Number of Conductors and AWG size |
4 x 17 AWG (1.0) |
| Outer diameter max. |
0.33 inch (8.5 mm) |
| Copper index |
26.9 lbs/mft (40 kg/km) |
| Weight |
63.2 lb |
| Part Number |
CF150-UL-10-04 |
Dynamic information
| Temperature, e-chain® min. |
41 °F (5 °C) |
| Temperature, e-chain® max. |
158 °F (70 °C) |
| Temperature, flexible |
+23 °F to +158 °F (-5°C to +70°C) |
| Temperature, fixed |
+5 °F to +158 °F (-15 °C to +70 °C) |
| v max., unsupported |
10 ft/s (3 m/s) |
| v max. gliding |
7 ft/s (2 m/s) |
| a. max. |
65.6 ft/s² (20 m/s²) |
| Length of travel |
Travels up to 164 ft (50 m) |
<

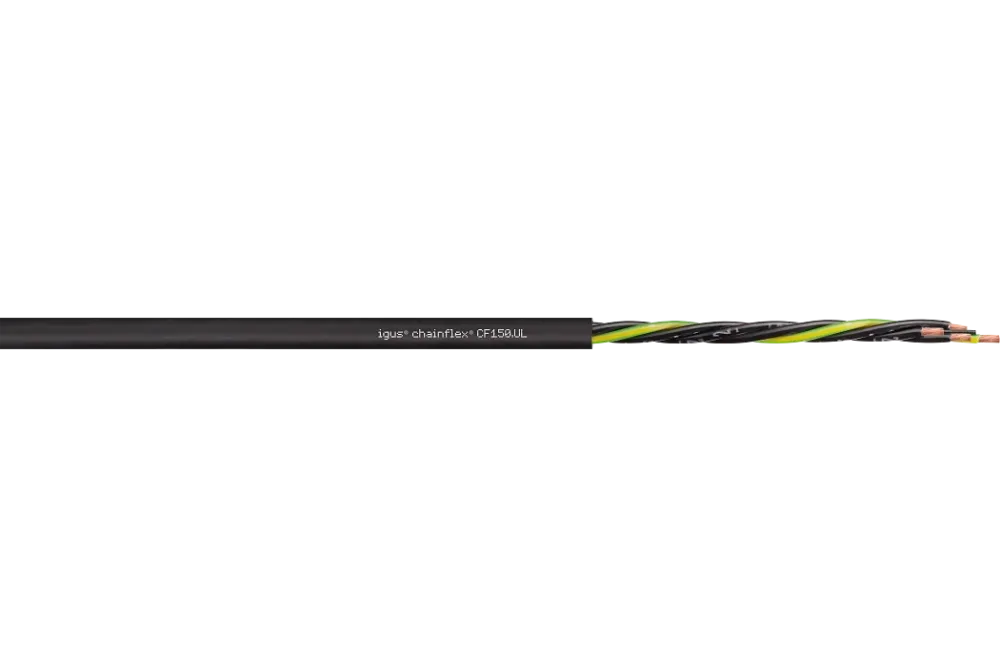

4 x 17 AWG Chainflex Control Cable CF150-UL-10-04
