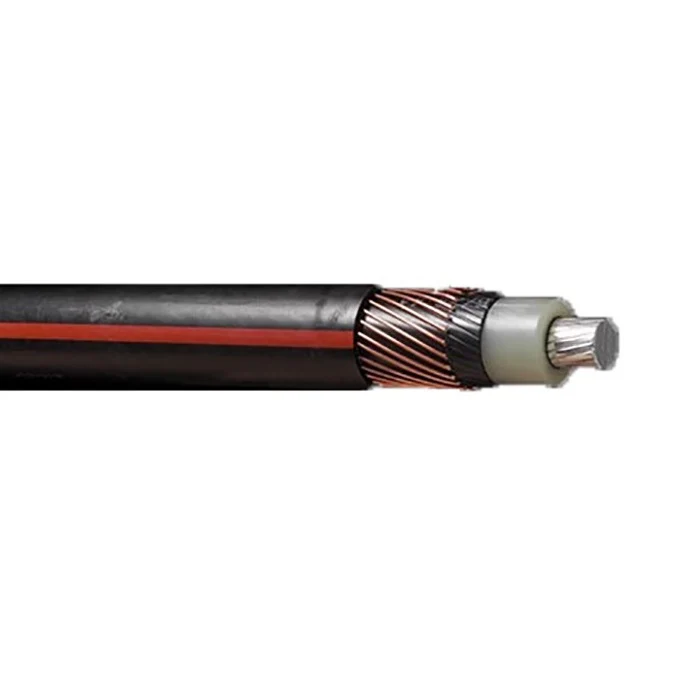

1/0 Solid Alliage léger Conductor 15KV URD – Full Neutral 133%

1/0 Solid Aluminum Conductor 15KV URD – Full Neutral 133% ★ Commandes sensibles pour une réponse immédiate aux actions ★ Pneus en caoutchouc antidérapants pour une adhérence optimale → Déchaînez la vitesse entre vos mains

[pdf] [/pdf]

1/0 Monochrome Aluminum Conductor 15KV URD – Full Neutral 133%

Application:

Aluminum Conductor 15KV URD cable is primary used for underground distribution, in direct burial or installed in conduit. 15KV URD cable is suitable for use in wet or dry locations. URD cable is to be used at 15,000 volts or less and not to exceed 90°C temperature in normal use.

Conductors:

Aluminum Conductor 15KV URD cable has a solid or compressed concentric strand soft drawn 1350 series aluminum conductor per ASTM.

Conductor Shield:

Aluminum Conductor 15KV URD cable has an extruded thermoset semiconducting shield, which is free stripping from the conductor and bonded to the insulation.

Insulation:

Aluminum Conductor 15KV URD cable ha
