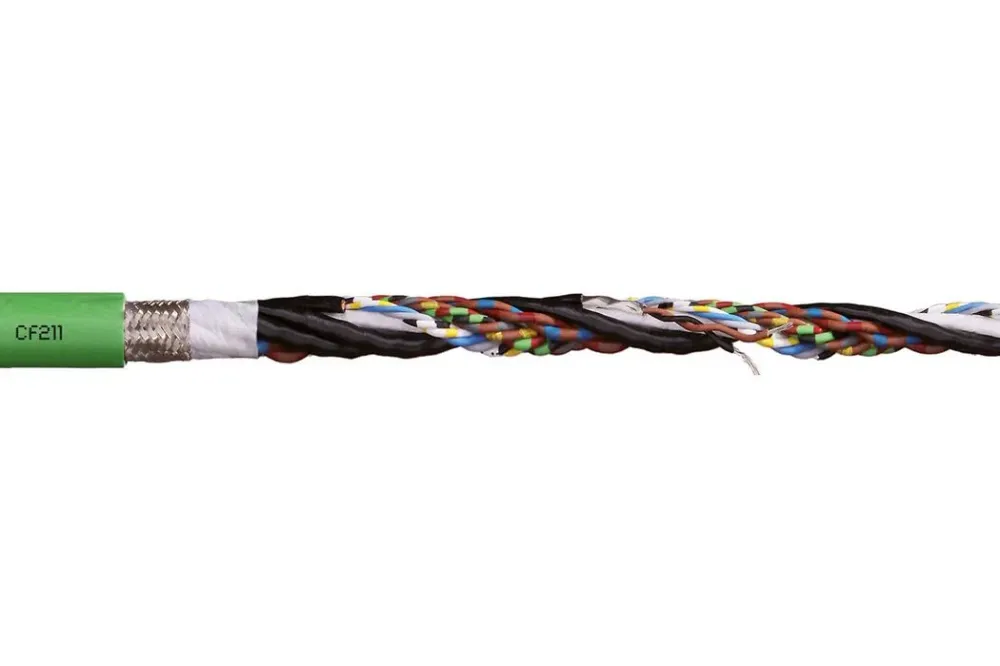

0.33 O.D. Chainflex Servo Motor Feedback Cable -037 ✔ Satisfaction garantie ou remboursement ✔ Retours gratuits dans 30 jours 🛒 Ajouter au panier
General properties
| Number of Conductors and AWG size | 6 PR 24 AWG (0.25) |
| Outer diameter max. | 0.33 inch (8.5 mm) |
| Color Code | white/brown, green/yellow, grey/pink, blue/red, black/violet,grey-pink/red-blue |
| Copper index | 34.3 lbs/mft (51 kg/km) |
| Weight | 55.8 lb |
| Drive Technology System | SEW |
| Part Number | CF211-037 |
Dynamic information
| Min. bend radius, e-chain® (factor) | 10.0 x d |
| Min. bend radius, e-chain® | 3.7 inch (95.0 mm) |
| Min. bend radius, modulable (factor) | 8.0 x d |
| Min. bend radius, flexible | 3.0 inch (76.0 mm) |
| Min. bend radius, fixed (factor) | 5.0 x d |
Min. bend radius, fixed (factor)
